Il piĆ¹ piccolo

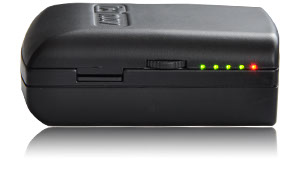

The Nano flight recorder is the smallest flight recorder designed according to the highest level IGC specification. It features an integrated 66-channel GPS receiver with built-in antenna. With version 2.0 advanced power management allows up to 35 hours of stand-alone operation with built-in battery. Bluetooth is used for easy data exchange with a PDA. Five LEDs display the operational status. A 4Gb SD card is used for flight data storage. Flights are stored directly in IGC format and are downloadable through USB connection. The battery is charged when the flight recorder is connected to a computer. All new Nanos are now preloaded with 2048bit keys, which is even higher than requested by new GFAC specification.
Caratteristiche Principali Integrated flight recorder according to high-level IGC specification
2048bit Digital signature
66 channel GPS receiver
Integrated GPS antenna
Plug and play Usb interface (mass storage device) Compatible with all operating systems (MS Win, Linux, Mac OS)
App. 28000 hours of logger memory (at 1sec recording interval). That is more than three and half year of non stop logging at 1 sec interval.
Flights stored in IGC format are downloadable through USB
Integrated Bluetooth device (SPP)
Integrated LiIon battery and smart power management, gives you up to 35 hours of independent power supply
Easybattery charging via USB port on your notebook, PC or wall charger
Robust ABS plastic housing
Easy handling (Turn on and go)
Simple signalling LED's
Engine noise level detector
Internal pressure sensor up to 16000m
Simple manipulation
Automatic power down after landing
Start logging at power on (for paragliders or pedestrians)
Toggle Bluetooth on and off pushing the rocker

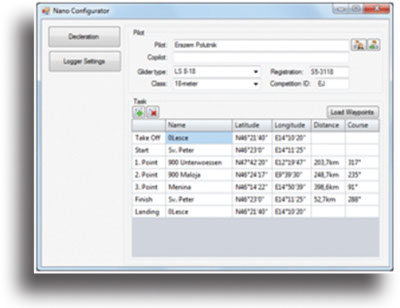

Nanoconfig program for creating declaration and system settings (for PC and Android) Hardware ARM7 core processor 4Gbytes of storage memory
Push and lever button
66-channel GPS receiver
Engine noise level sensor
High resolution pressure altitude sensor measures up to 16000m Input e output USB interface (mass storage device)
Integrated SD card reader
serial RS232 interface for PDA connection
Bluetooth interface for wireless connection with PNA or Smart phone Dimensioni e Pesi Dimensioni esterne 65 x 42 x 23 mm
Peso circa 66g Accessori Nano Power DC-DC converter input up to 24V converts to 5V/1A
Connection cable to Oudie CC-NP-OUDIE
Connection cable to PDA/PNA (IPAQ38xx, HP31x) CC-NP-IPAQ
Connection cable to stanadard RS232 (DB9) CC-NP-232
Connection cable to RJ11 (IGC standard) CC-NP-IGC Domande Frequenti Frequently asked questions about Nano (FAQ)
