Nano 3
Il vostro backup
 Display a Colori •Jogger •Batteria

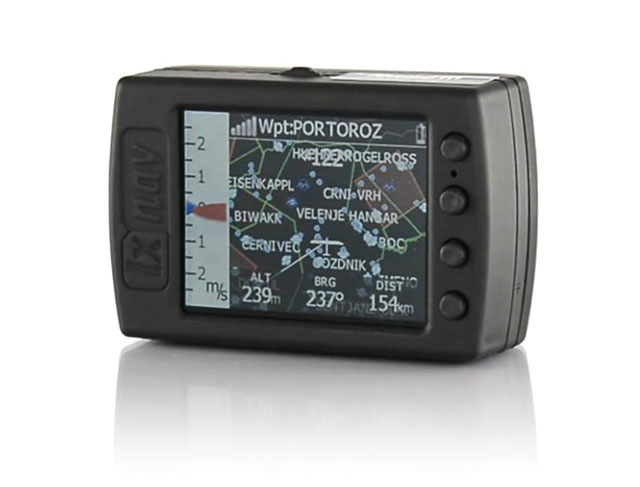

The Nano3 flight recorder is the smallest flight recorder designed according to the highest level IGC specification with QVGA screen. It features an integrated 56-channel GPS receiver with built-in antenna. Allows up to 16 hours of stand-alone operation with built-in battery, without any power management, power management may increase operating time on battery up to 35 hours. Bluetooth is used for easy data exchange with a PDA. Five LEDs display the operational status, when LCD is off. A 4Gb solid state memory. Flights are stored directly in IGC format and are downloadable in a few seconds through USB connection. The battery is charged when the flight recorder is connected to a computer or wall charger via MiniB USB connector. Nano3 uses 2048bit digital signature, which is even higher than requested by new GFAC specification.

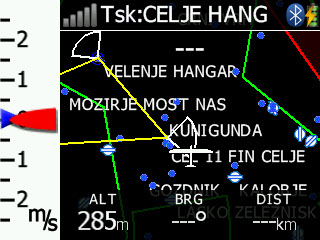

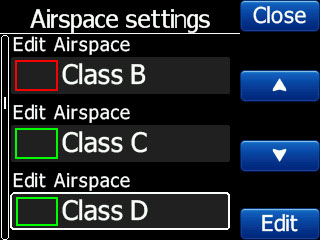

Caratteristiche Principali Integrated flight recorder according to high-level IGC specification 2048bit digital signature Built in high resolution variometer Display of airspace (CUB compatible) Display of tasks Task and waypoint navigation (CUP compatible) Built in hardware for inertial platform 16 hours of operation with LCD on. up to 35 hours of authonomy with power management. App. 28000 hours of logger memory (at 1sec recording interval). That is more than three and half year of non stop logging at 1 sec interval. Flights stored in IGC format are downloadable through USB in a second Integrated Bluetooth device (SPP) Easy handling (Turn on and go) Simple signalling LED's Engine noise level detector Simple manipulation Automatic power down after landing (can be set by user) Start logging at power on (for paragliders or pedestrians) Adjustable vario volume Nanoconfig program for creating declaration and system settings (for PC and Android) Color Display Sunlight readable LCD 2'' (5.08cm) screen size 262144 Colors QVGA 340*240 RGB pixels (retina) Hardware ARM M4 core processor 4 Gbytes of solid state memory Push and lever button 4 navigation buttons 56-channel GPS receiver Plug and play USB interface (mass storage device) USB Compatible with all operating systems (MS Win, Linux, Mac OS) Engine noise level sensor High resolution variometer same technology as on V9/S80 vario Built in vario piezzo speaker High resolution pressure altitude sensor measures up to 16000m Ineretial platform 3 axis accelerometer and 3 axis gyroscope. Integrated LiIon battery and smart power management, gives you up to 25 hours of independent power supply Easy battery charger via USB port on your notebook, PC or wall charger Robust ABS plastic housing Input eo utput USB interface (mass storage device) serial RS232 interface for PDA connection Bluetooth interface for wireless connection with PNA or Smart phone Dimensioni e peso Outline dimension 65*42*27mm Weight: ~76g Accessori Nano Power DC-DC converter input up to 24V converts to 5V/1A Connection cable to Oudie CC-NP-OUDIE Connection cable to PDA/PNA (IPAQ38xx, HP31x) CC-NP-IPAQ Connection cable to stanadard RS232 (DB9) CC-NP-232 Connection cable to RJ11 (IGC standard) CC-NP-IGC Nano3 Mount Video tutorial Nano3 Overview
