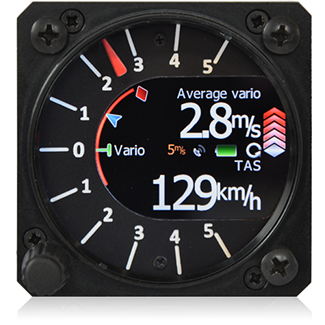

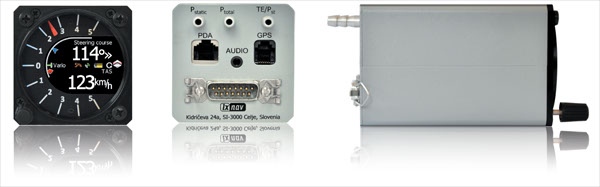

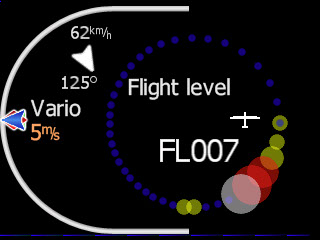

Main Features - Hardware - Color Display - Input Output - Power Supply - Optionals - Size And Weight - Related videos - Images The LXNAV S7 is a standalone digital speed-to-fly variometer and final glide calculator with GPS input and PDA/PNA input/output • Mechanical needle driven by stepper motor allows fast response and very accurate vertical speed indication • A two-inch 320x240 sunshine readable screen displays user adjustable parameters • An integrated rotary switch with push button is used to setup all the parameters • Integrated g-meter • Flarm clock screen with acoustic warning (when connected to Flarm device) • Integrated logbook • A second indicator with rotary switch and push button can be connected to S7 for double-seated aircrafts • Audio Equalizer for better vario sound performance • Multilangusge graphic user interface (10 languages) • Integrated Voice module • Thermal assistant • Inertial assisted vario • PCAS/ADSB warnings

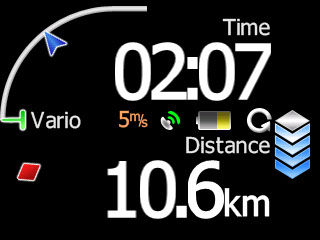

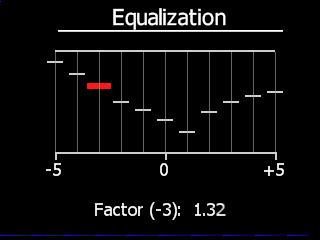

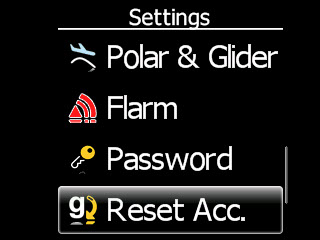

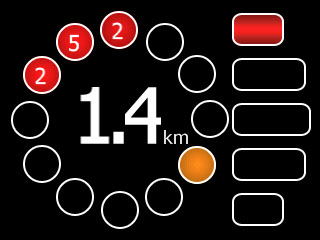

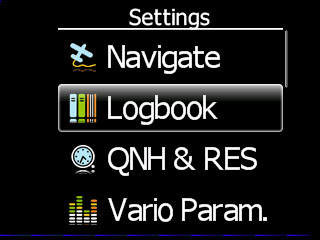

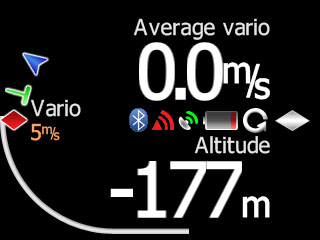

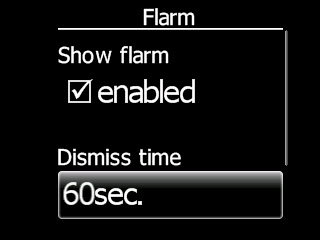

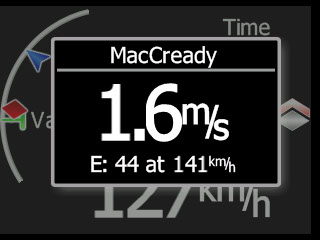

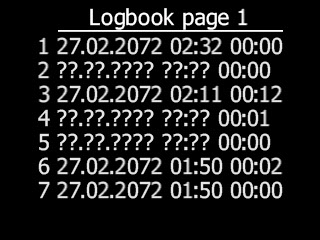

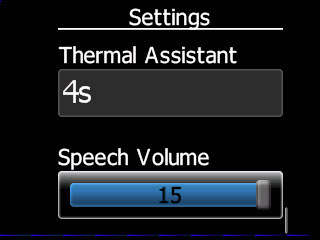

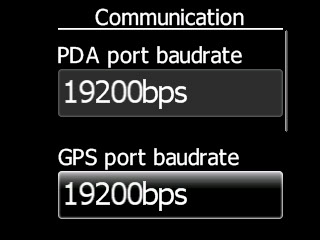

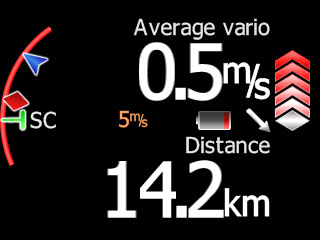

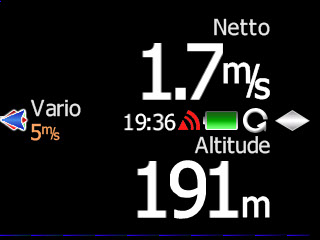

Main Features Extremely bright 2” (5 cm) color display - readable in all sunlight conditions with adjustable backlight Rotary switch with push button is used to setup all the parameters GPS input with two-way communication in standard IGC form (RJ11 connector) PDA input with two-way communication and 5V power supply for PDA(RJ45 connector) Integrated g-meter 100Hz sampling rate for very fast response TE compensation can be selected to use either pneumatic TE probe or electronic compensation Pre-loaded polar database for almost all gliders Multi language user interface (10 languages: English, German, Spanish, Finnish, Slovenian, Czech, Dutch, French, Italian, Polish) Thermal assistant Built in Voice module Digital Equalizer for better vario sound performance Integrated logbook Flarm clock screen with acoustic warning when connected to FLARM device Much additional information can be displayed - such as average, thermal vario, netto, time, speed… Many custom audio settings Speed to fly indication Several useful variometer readings can all be displayed on the same vario scale: Instantaneous Vario (outer red pointer), Average Vario (red diamond), MacCready Setting (Blue arrowhead), Thermal Average (Green “T”) making it easy to compare the achieved average and thermal climb rates with the MacCready setting. Configurable serial interfaces for GPS and PDA up to 1Mbit Direct communication between PDA nad Flight recorder (for flight declaration) Supports Flarm unit by latest flarm specification 6.0 Hardware ARM processor Mechanical needle driven by stepper motor QVGA (320*240pixels) sunlight readable display Digital temperature compensated pressure sensors for altitude and airspeed 3 axis digital +-6g accelerometer Smooth audio output Color display 16 bit color display 2” (5cm) screen 320 by 240 pixel resolution Input and output GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11) PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A) audio output 1Mbit CANbus for connection to S7D repeater Speed command and Vario priority input Flarm warning indication Rotary knob with push function Power supply Power input 10-16 V DC Consumption of LXNAV S7 at 12 V: 120 mA - minimum brightness without audio. 180 mA - maximum brightness without audio. Consumption of LXNAV S7D at 12 V: 90mA - maximum brightness Optional accessories LXNAV S7D rear seat device LXNAV Nano Oudie Bluetooth Nano Size and weight Standard 57mm (21") hole 61mm x 61mm x 95mm (exclusive connector) Weight: ~330g ﷯ oudie_s7_nano_small More can be read in S7 manual.
Latest firmware is here. Related videos Unboxing S7 by GliderPilotShop Setup menu overview Setup vario sounds Task declaration from oudie to Nano Firmware upgade with Oudie 2012_08_13__12_35_31___14 2012_08_13__12_35_31___35 2011_09_20__14_33_56___32 2011_10_05__08_55_04___3 2011_09_20__14_33_56___10 2011_09_20__14_29_02___3 2013 08 23 15 52 11 1 2013 08 23 15 52 11 31 2013 08 23 15 52 11 57 2011_10_05__10_50_36___5 2011_09_20__14_29_02___4 2011_10_05__08_55_04___9 Images 3view_small
